Autel MS ULTRA

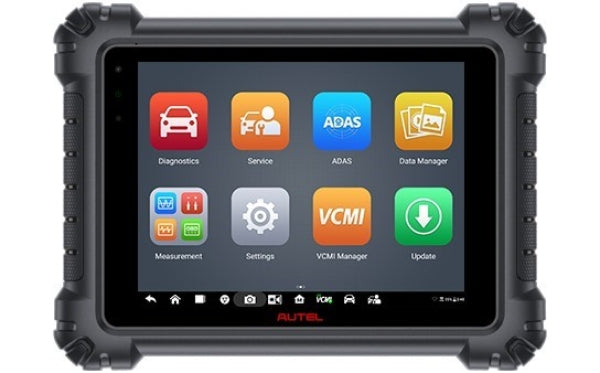

The AUTEL MaxiSys Ultra was developed to maximize the capabilities of automotive mechanics in terms of vehicle diagnostics. The device is equipped with a 13-inch touchscreen and Android 7.0 OS, powered by an octa-core processor (2.3 GHz Quad + 1.7 GHz Quad), and a very large internal memory of 256 GB. This is also needed to support the new multi-application navigation with a split screen for providing diagnostic hints and test components. In combination with dynamic topology module mapping, enhanced AutoSCAN features, and intelligent diagnostic options, the Ultra offers automotive workshops step-by-step repair guidance. The new MaxiFlash VCMI not only functions as a diagnostic interface and Pass-Thru Box, but it can also be used as a 4-channel oscilloscope. The oscilloscope can be used, among other things, as a waveform generator, multimeter, and CAN BUS tester. The practical docking station ensures that you always have the necessary charging capacity for extensive work with your new AUTEL MaxiSys Ultra.

Features Autel MS Ultra

• Autel updates provide the latest OE-level coverage for more than 80 US, Asian, and European vehicles, including sports cars
• Exceptional OE-level functionality from comprehensive OBDII diagnostics and services to advanced ECU coding and programming
• Automatic system and software updates with real-time push notifications over the internet
• Interactive data logging sessions enable direct contact with Autel support for first-hand troubleshooting of diagnostic errors
• One-stop multitasking, designed for ideal workshop activity management to keep all data assets, customer information, and vehicle data well organized

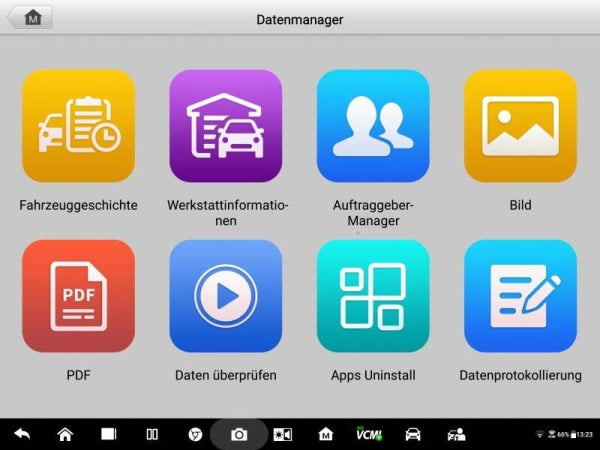

• Cloud-based data manager stores customer and vehicle records, scanner data, and technician notes
• Function overview of the various Autel diagnostic devices

Automotive Repair Aids

• Guided aids with DTC analysis & fault code solutions

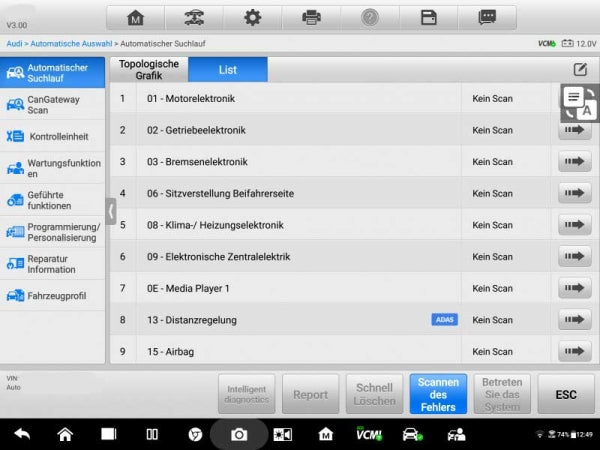

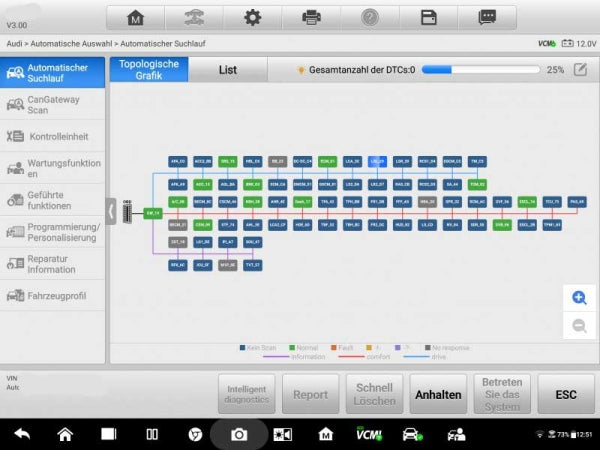

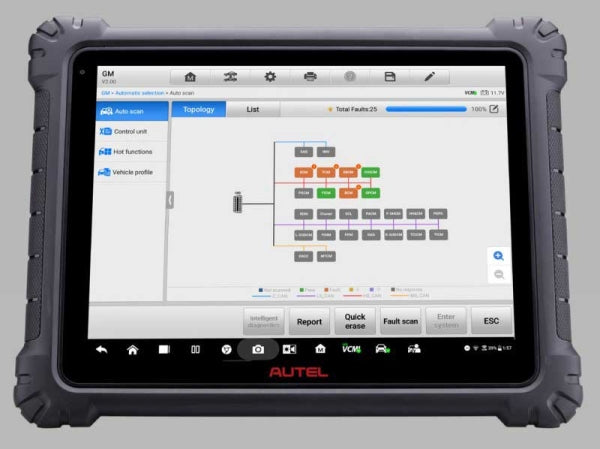

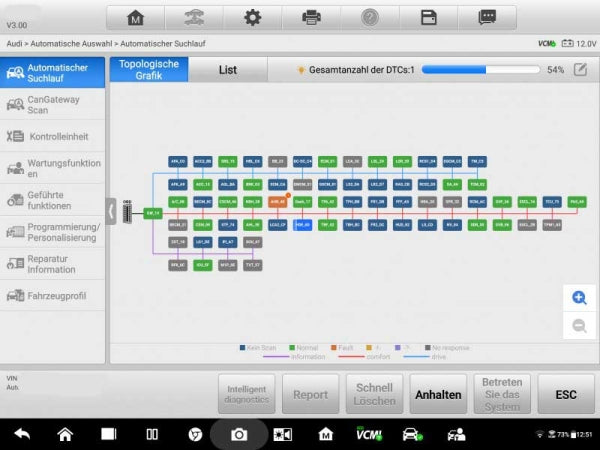

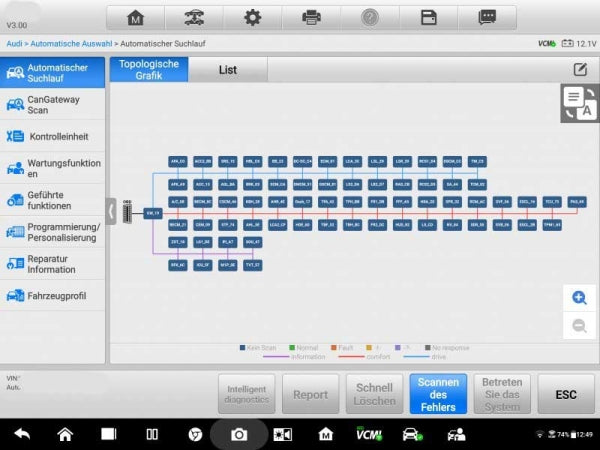

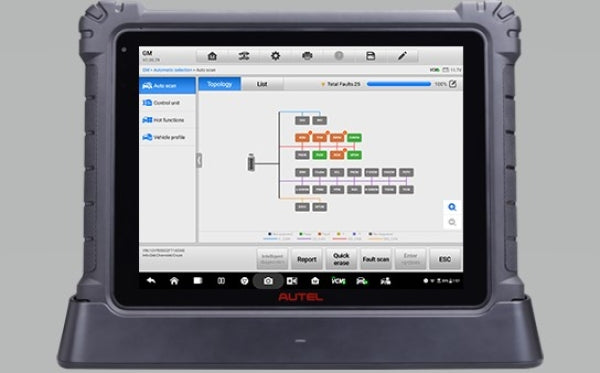

• Topology Mapping: All ECU System Module Status Screen (for equipped vehicles)
• Relevant Cases: Troubleshooting with real repair hints / repair tips and video examples
• Split-screen display for simultaneous viewing of multiple functions
• ADAS calibration software optionally available (purchase required)

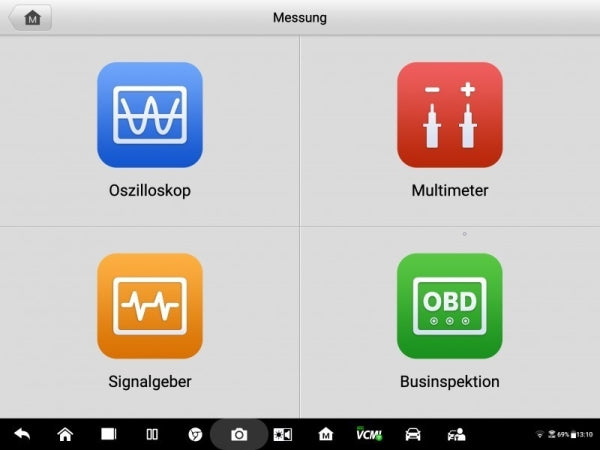

Integrated Oscilloscope

• Advanced VCMI with 4-channel oscilloscope, multimeter, waveform generator, and CAN BUS testing
• 20MHz bandwidth, more accurate with 80MS/s sample rate, 32M buffer memory stores more complex signals, allows zoom and playback
• Pre-set library for guided tests and waveforms, instructs technicians on how to connect the oscilloscope to analyze faults
• Offers a large number of pre-set settings, including connection diagrams, waveform library, reference waveforms, root cause analysis, and waveform setting with signal output via a waveform generator and voltage generator

Special Coding and Programming Functions

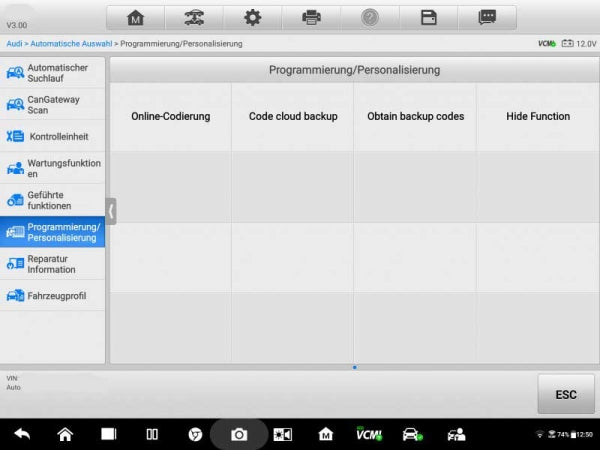

• Online coding and programming
• Offline coding
• Backup of ECU coding data

Intelligent and Advanced Diagnostics

• Data bus topology
• Online analysis of fault codes

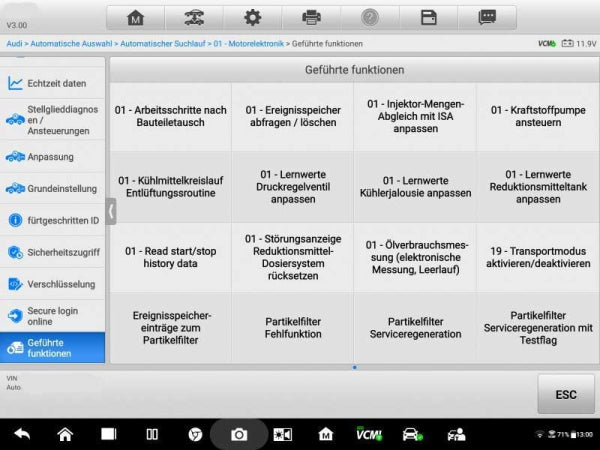

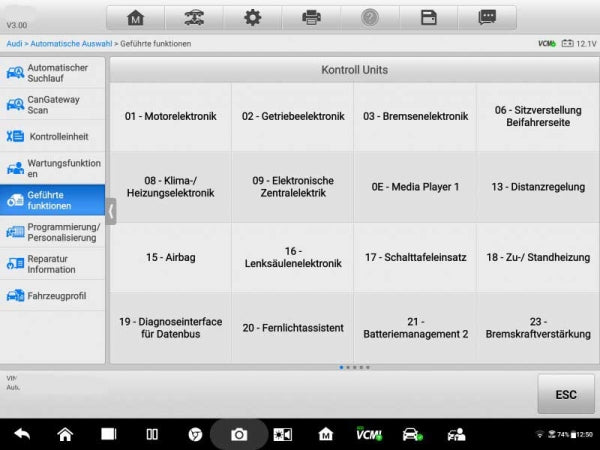

• Online guided diagnostics (repair assistant)

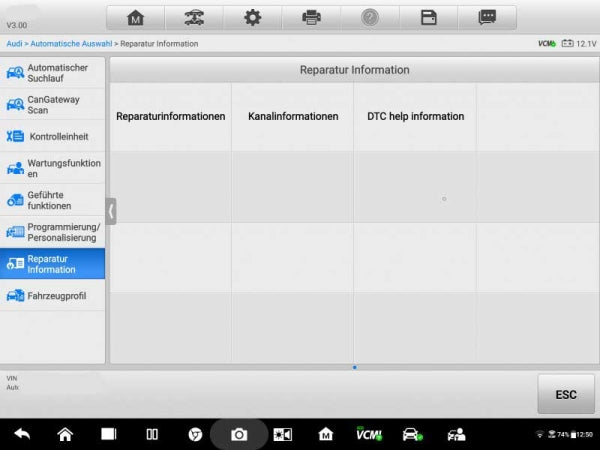

• Online repair tips
• CAN BUS test - Check the diagnostic bus

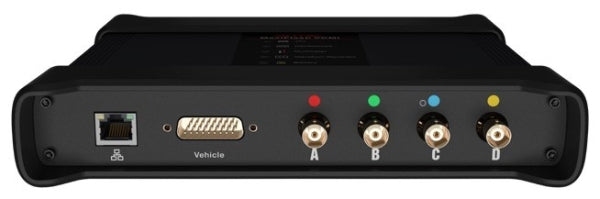

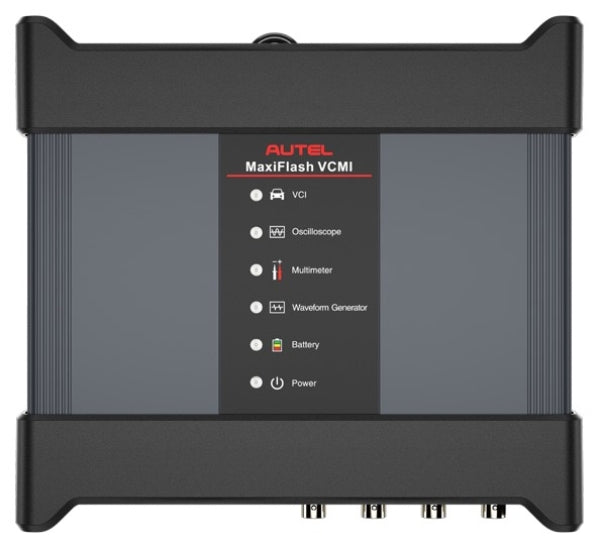

VCMI Wireless Interface

• Supports OEM PassThru standards J2534, D-PDU and RP1210
• Support for new DoIP, CAN FD and Mega CAN protocols
• 4-channel oscilloscope with a frequency of 20 MHz
• Signal generator
• Built-in multimeter

Technical Data Autel MS Ultra

• 12.9'' Touchscreen (2732px x 2048px) TFT-LCD Corelle-Glass
• Operating system Android 7.0 OS
• Processor: 2.3GHz+1.7GHz Samsung Exynos 8895V Octa-core
• RAM: 4GB
• Internal memory: 256GB SSD
• 18000mAh - 8h continuous operation
• 16MP rear camera & 5MP front camera

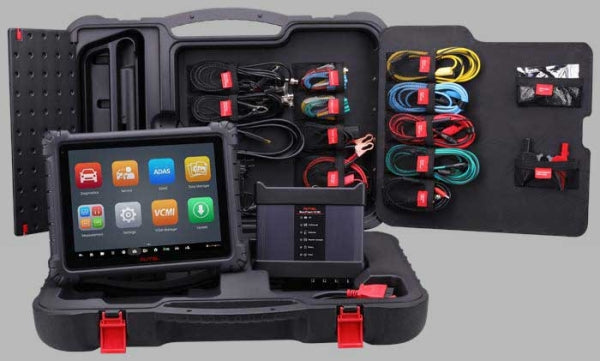

Scope of Delivery Autel MS Ultra

• Autel MaxiSys ULTRA Diagnostic Device (German and English languages)
• Docking station
• Advanced VCMI with integrated 4-channel oscilloscope, multimeter, signal generator, and J2534 PassThru Flasher
• Connector kit
• Carrying case with accessories
• 2-year manufacturer's warranty
• 1 year of updates included
